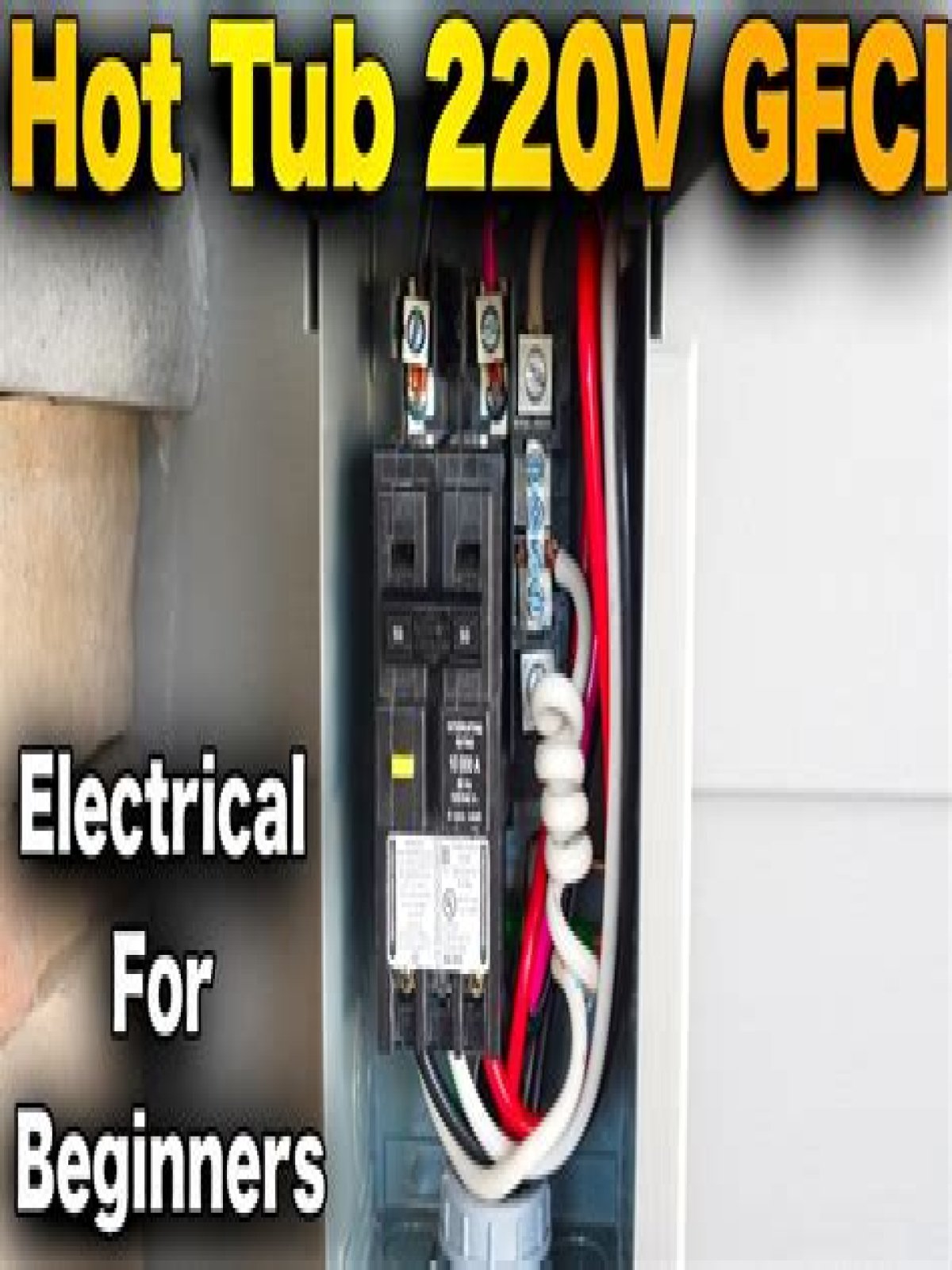

First, attach the wires that lead to the spa. Attach the red, white and black wires to the bottom of the GFCI breaker, and attach the green grounding wire to the ground bar. Attach the wires from the breaker panel, and attach the black and red wires to the breaker feed lugs on top of the breaker.

Then, does a hot tub need a GFCI breaker?

According to the National Electric Code, a hot tub or swim spa is in fact required to be GFCI protected. There are also some other guidelines depending on whether or not you are installing your spa inside or outside.

Additionally, how do you wire a 120v GFCI breaker? Connect the GFCI Breaker Connect the hot circuit wire to the "HOT" or "LOAD" screw terminal on the GFCI breaker, using a screwdriver. Connect the neutral circuit wire to the "NEUTRAL" screw terminal on the GFCI breaker. Connect the GFCI breaker's coiled white neutral wire to the neutral bus bar on the service panel.

Consequently, how far away does a GFCI have to be from a hot tub?

GFCI for Outdoor Hot Tubs There must be at least one convenience receptacle located between 6 to 10 feet from the inside wall of the hot tub. The receptacle must be GFCI protected. Nonmetallic conduit or liquid-tight flexible metal is permitted if the receptacle is less than 6 feet away.

Can you get electrocuted in a hot tub?

Yes, you can definitely get electrocuted in a hot tub. When this happens, it is very scary for the person being electrocuted and for anyone else around who does not know how to help. If you are around when a person starts getting electrocuted in a hot tub, Mayo Clinic suggests these steps: Take Caution.

Do I need a GFCI outlet if I have a GFCI breaker?

You need GFCI protection in only one device per circuit. Or stated better, you should not have a GFCI outlet downstream of a GFCI breaker. It's not unsafe per se, but it will be an unpredictable pain to deal with when it trips and you don't know where to go to reset it. GFCI Outlets do not require GFCI breakers.

What size wire do I need for 50 amps?

For a 50-amp aluminum wire, use No. 4 AWG. The smaller the number on the wire, the larger the wire diameter.

What size breaker do I need for a hot tub?

The most common voltage requirement is 240 volts and most will need a 50 amp circuit. Some hot tubs have load requirements of up to 60 amps and others require only 30 amps or 40 amps. When wiring a hot tub, it is extremely important to correctly size the circuit breaker for the required amperage.

Does a hot tub need a dedicated circuit?

The electrical circuit for the hot tub must be dedicated and not shared with any other electrical things such as appliances, electric yard tools, power tools, etc.

Do hot tubs need a neutral?

Hot tubs with mixed voltage components (such as 120V ozonator and 240V heater) require 4-wire systems. This means they require an electrical circuit providing (2) hot wires, (1) neutral, and (1) ground wire. Both 3-wire and 4-wire spas must be GFCI protected. A 4-wire hot tub must not be connected to a 3-wire service.

How deep do you bury electrical wire to a hot tub?

If space constraints prevent wiring from being at least five feet away, underground wiring should be installed in rigid metal conduit, intermediate metal conduit or a nonmetallic raceway system that is listed for direct burial. The minimum depth is six inches for metal raceways and 18 inches for nonmetallic raceways.

What do I need to wire in a hot tub?

The supplies include:
  1. Circuit Breaker. Direct connection to a circuit breaker is the primary factor that distinguishes between a wired hot tub and a plug and play type of spa.
  2. Service Panel.
  3. Additional Power Outlet.
  4. GFCI Shut-Off Box.
  5. Wire.
  6. Conduit.

How do you test a GFCI breaker?

GFCI circuit breakers also should be tested monthly. The test is similar to testing GFCI outlets. You simply open the door on your home's service panel (breaker box) and press the test button on the GFCI breaker. This should cause the breaker to trip, shutting off all power to the entire circuit.

Will a 2 pole GFCI breaker work without a neutral?

On 2P 15A to 50A the GFI breaker will work with or without a load neutral wire. However, if there is no load neutral wire the breaker neutral (white curly wire) must still be connected to the panel neutral. On 2P 60A and all 3P (QO only) there is no load neutral wire connection on the breaker.

How do you wire a 4 wire to a 3 wire?

Connect the ground wire of the 3-wire cable to the ground wire of the 4-wire cable. Connect the black wire of the 3-wire circuit to either the red or the black wire of the 4-wire circuit. The red and black wires are the"hot" wires. Either wire can be used to power a circuit.

How do you wire a 220 outlet for a hot tub?

There are only two ways to connect a hot tub to power. The first is through a low 110v connection that simply plugs into a wall outlet, and the second is through a 220v, 230v, or 240v connection directly to your home's central circuit breaker box.

What size wire do I need for a 50 Amp hot tub?

Wire Size Table
Amperage of Spa Gauge of Wire
40-50 amp AWG #8
60 amp AWG #6

How do you wire a 50 amp breaker?

Pull the wires connect all the wires to the outside receptacle or panel first. Insert a double pole 50-amp breaker into your MAIN or sub service box. Connect the red wire to the Y configuration and to one of the screws on the breaker. Connect the black wire to the X and to the other screw on the breaker.

Where is the GFCI on a hot tub?

Near your hot tub, inside a metal box probably attached to the side of your house, is your hot tub GFCI breaker. It's a black plastic switch which automatically flips when it experiences an electrical surge.

What kind of wire do I need for a 220v hot tub?

The recommended hot tub wire size is 6 AWG copper. Beginning at the LB fitting, use fish tape to pull the wires from the fitting to the spa panel.

How far away from the house should a hot tub be?

Having your hot tub right next to the wall of your home is probably too close. The steam that comes from the water may seep into windows and water splashed from the tub may cause a slippery walkway. A few feet away from your home and a few feet away from your walkway is typically the ideal combination.

What size breaker is needed to run a hot tub?

The spa must be hooked up to a dedicated 220-240 volt, 50-60 amp breaker and GFCI. The term “dedicated” means the electrical circuit for the spa is not being used for any other electrical items (outdoor lights, appliances, etc.).
